Sewing Cabinet Plans

Notes

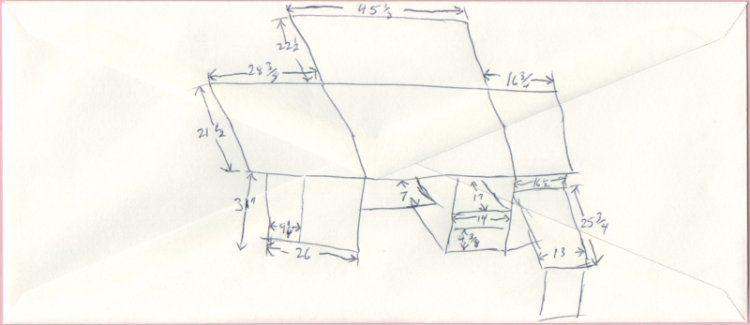

Most measurements need not be exact duplicates of these figures. In other words, there is no reason your table top couldn't be 44" instead of 45 1⁄8". Although this cabinet is an inch or two larger in a couple of dimensions than the prototype which is the Horn product, generally it's how it turned out; I didn't really plan it that way. The only critical measurements would be:

• The vertical location of the shelf in the knee hole, as I used it to support the air lift.
• Drawer heights. I used a commercial dovetail jig (Omnijig) and for the half tails to be properly dimensioned, drawer heights need to be in multiples of 7⁄8".
• Serger tray and drawer width. I used Accuride slides, and they are each ½" in width, thus the drawer and tray must be exactly 1" less than the opening.
• Obviously, fitting up doors and the two folding tops are important for matching to the mating cabinet parts, but they all could be adjusted to match different overall dimensions you might select.
• Also, I laid awake at night agonizing over cutting and fitting the two flip out table sections to the table top. The sum of the two flip out sections and four pieces of banding must exactly equal the top section and two pieces of banding, and once those sections are banded, you're committed whether they fit or not.
• Location of the serger shelf storage support is a little fussy. Experiment.

Other Details

I used a standard ½" radius cove bit and roundover bit in my router table to make the rule joint. The geometry of the hinges for rule joints is tricky. Check Fine Woodworking, #138, September/October 1999, pg 62 for an excellent discussion.

The door hinges allow more than 180° opening in order to be sure and support the extension tables.

Woodhaven makes a nifty template and router bit for sewing table hinges. It's worth getting. You'll use the bit with other hinge templates that you'll be inspired to make.

I got the air lift from Rockler. I think I got the sewing cabinet hinges, and the door hinges there, too.

The insert was originally purchased through the dealer at which we first saw the Horn cabinet. I've subsequently had to replace it (due to SWMBO error) and I found a source at sewingmachinecabinets.com. They're about $30, and you have to specify the cabinet and the machine. In this case the cabinet is the Horn 1075 (although it appears that model is now called the 2175; I don't know if any dimensions are different).

The large surfaces are all ¾" oak veneer plywood, except the doors, which are solid oak.

The top panels are banded in solid oak approximately 2" wide. If I were doing it again, I might not go that wide; the mitering is very fussy. There is zero margin for error.

The end and back panels have ¼" thick appliques that simulate rail and stile construction. I cut them with the same router bit profile that I used to make the real rails and stiles for the doors.

The top panel overhangs the back of the cabinet sufficiently to accomodate a swing-out panel that supports the rear panel when it is raised.

I attached the top to the cabinet with ⁵⁄16" flat head machine screws. There are triangular gussets in all of the corners let into dadoes on the inside surface of the cabinet just below the top. I then inlaid ½" blocks of oak into the plywood, then drilled for and installed threaded brass inserts to receive the machine screws. Drywall screws were just not good enough for an assembly as heavy as this with the top on.

Please feel free to e-mail me if you have any questions. I'll update this page periodically as questions are received.
